Modelling an Instant Run-off Election Using NetLogo

- Advertisement -

It is election time in India and the whole country is watching the latest election news, discussing the functioning of EVMs and the code these use, and talking about which party will form the new government. The author takes this opportunity to explore a different kind of electoral system, in which votes are given to candidates in order of preference. We explore the code in such a situation, and look at how the winner is determined.

Intuitively, we understand that an election’s outcome will be affected by the nature of the process. Many countries use a run-off between the top two candidates, and the leader of the first round may not make it through the second round. There is also the possibility of an instant run-off in which everyone votes for multiple candidates in the order of preference. Given the time and effort involved in the Indian elections, the instant run-off would seem to be an attractive alternative. However, it is fun to see if we can simulate outcomes by modelling an election. Let us model an instant run-off election with only a second preference vote. The application we will use is NetLogo, which is ‘a multi-agent programmable modelling environment’.

You can get started with NetLogo at http://ccl.northwestern.edu/netlogo/.

- Advertisement -

NetLogo is based on the concept of patches. We will assume that each patch represents a constituency. Each constituency will have N candidates, the number of which will vary at runtime. Each tick will represent a voter voting.

Each voter will vote twice. The first vote will be for any one candidate, and the second one for any other candidate.

For the sake of simplicity, voting will be random. However, we will configure the preferred candidates, who will have double the chance of getting a vote.

Figure 1 displays the interface for this model. The Setup button initialises the model. The Go button counts the votes and shows the results based on the first preference votes. The button for processing the second preference votes will display the result (after the second preference votes have been processed).

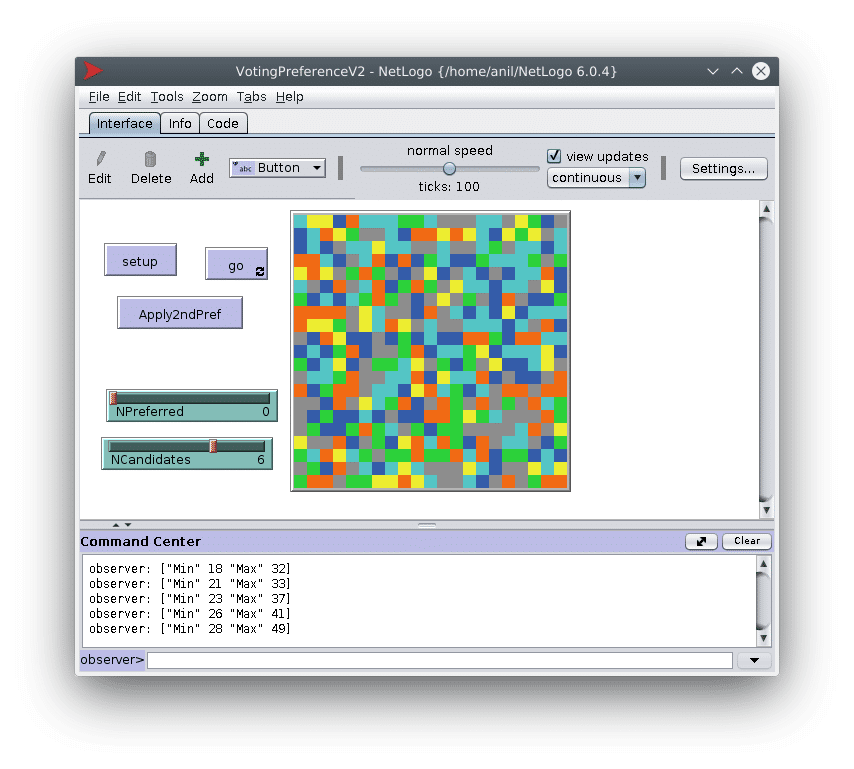

Figure 1: An interface for the simulation. The result shown is for six candidates whereby each has an equal chance. The colour of a square indicates the winner of the patch

The data structures

Keeping track of first preference votes is easy. For each constituency, we need an array or a list with a vote count for each candidate. Keeping track of second preference votes is trickier. We need to be able to count them and check if the first preference candidate has been eliminated. Hence, this will need to be a list of lists, in which each list represents the votes cast for a candidate, given that the first preference vote was for a specific candidate.

The setup code

The code is written on the ‘Code’ tab. If you remember Logo from your school days, you can get a feel for the programming style. The coding style is heavily oriented towards functional list processing paradigms. If you have programmed in Python, you will need to keep looking at the syntax but programming will not be that difficult.

globals [NVoters]

patches-own [votes nextPref candidate winner loser listc]

The patches-own are variables that are for each patch, which, in our case, is a constituency. The lists, votes and nextPref keep count of the first and second preference votes. The last two variables, loser and listc, are needed to process the second preference votes of the current loser. The second preference votes are added to the votes of the candidates who have not been eliminated.

to setup


set NVoters 100

let initListOfList []

repeat NCandidates [

; add a list of N 0’s as the last element of the list

set initListOfList lput n-values NCandidates [0] initListOfList


ask patches [

set votes n-values NCandidates [0]

set nextPref initListOfList

; create a list [0 1 ... N-1]

set listc range NCandidates

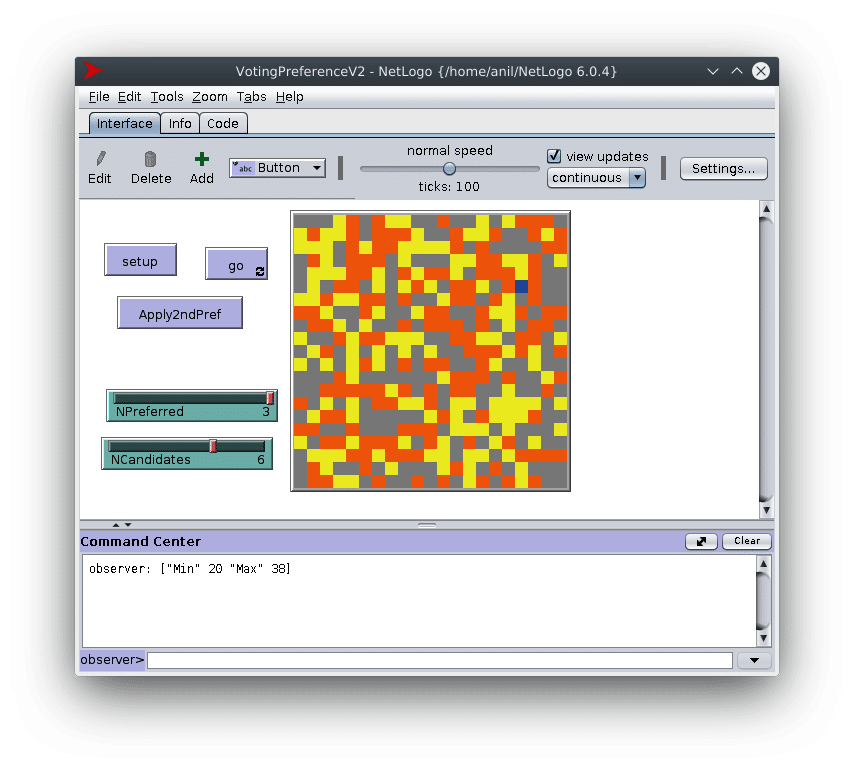

Figure 2: The results after the main vote. The result is for six candidates, where three of them have double the chance of winning. The screen is dominated by three colours

The Main Code

In the interface, the Go button will have ‘Forever’ ticked.

to go



if ticks = NVoters [





The vote procedure is now called. Every tick increments the counter. The loop stops when each voter has voted and the result computed.

to vote

ask patches [

; the first NPreferred candidates get double the chance

set candidate random (NCandidates + NPreferred) mod NCandidates

; increment the vote count of the candidate

set votes replace-item candidate votes ( item candidate votes + 1 )

; change the colour of the patch to the current candidate

set pcolor 20 * candidate + 5




to second_pref_vote

; select the list for for first preference candidate

let votes2 item candidate nextPref

; each remaining candidate gets the same chance

let pref2 random (NCandidates - 1)

if pref2 >= candidate [

set pref2 pref2 + 1


; increment the vote count and update the list of lists

set votes2 replace-item pref2 votes2 ( item pref2 votes2 + 1 )

set nextPref replace-item candidate nextPref votes2


The ‘ask patches’ loops over each patch/constituency.

The methods given above just take a random vote and store the result in suitable lists.

to compute

let vmin NVoters

let vmax 0

ask patches [

; index and candidate are the same for the first pref vote

; but as candidates are eliminated, the two will not be the same.

let idx position max votes votes

set winner item idx listc

set vmax max list vmax max votes

set vmin min list vmin max votes

set pcolor 20 * winner + 5


show (list “Min” vmin “Max” vmax)


In addition to finding the candidate with the maximum votes, the method also finds the maximum and minimum votes of the winning candidates.

Figure 2 shows the results with only the first preference votes.

Processing for the second preference

The losing candidates are eliminated, and their votes are transferred to the remaining candidates. The process is repeated until only two candidates are left.

to process

repeat NCandidates - 2 [





The hard part is handling the votes for candidates who have been eliminated. In the first preference votes, the item in the list itself is removed. In the second preference votes, it is simpler to mark eliminated candidates’ votes by the place holder -1.

to apply_nextPref

ask patches [

; select the losing candidate

set loser position min votes votes

; remove his votes

set votes remove-item loser votes

; remove 2nd pref votes


set listc remove-item loser listc

; -1 votes is used for eliminated candidates

let votes2 filter [ i -> i != -1 ] item loser nextPref

; transfer 2nd pref votes to the remaining candidates

set votes (map + votes votes2)



to remove-loser-nextPref

; replace votes of losing candidate by -1 in each list

let c item loser listc

let tempList []

foreach nextPref [ x ->

let v2 replace-item c x -1

set tempList lput v2 templist


set nextPref tempList


Figure 3 shows the results after the second preference votes are counted. This is not a serious model, but just to check and demonstrate that the results can be very different if second preference votes are applied.

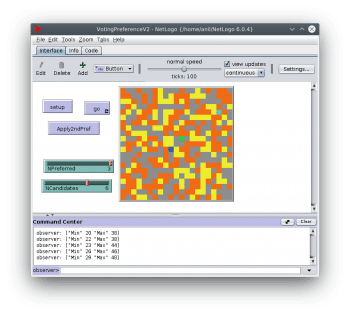

Figure 3: The result after the second preference vote is counted for the same run as in Figure 2. The screen is still dominated by three colours but there is a substantial difference from Figure 2

After the second preference votes are applied, the winners will be closer to crossing the 50 per cent mark, though not always, as some second preference votes would have been for the candidates who are eliminated.

The model chosen was very simple so that the ideas of how to model in NetLogo can be explored. Greater complexity can be added, and it is fun to program in a language with syntax different from the procedural languages.

One aspect of NetLogo that we have not used or explored is the use of turtles. Each candidate could be a turtle, belonging to a party or could be an independent. The model can be mind-bogglingly complex. You can go ahead and create one in which your favourite party wins!
