FOSS Security Tools: Binwalk

0
36

In this fifth article in the FOSS security series, we will explore the use of the binwalk tool.

Binwalk is used to scan firmware for embedded files and executable code. This includes compressed files, firmware headers, archive files, bootloaders, file systems, etc. It is supported on GNU/Linux, Mac OS X, Windows, and FreeBSD. An API allows you to access its classes and methods to write your own binwalk scripts. The source code is written in Python and released under the MIT licence.

Installation

A Parabola GNU/Linux-libre (x86_64) system is used to install binwalk and its dependency packages.

$ cat /etc/os-release
NAME=Parabola
PRETTY_NAME=”Parabola GNU/Linux-libre”
ID=parabola
ID_LIKE=arch
BUILD_ID=rolling
VARIANT=”x86_64 SystemD Edition”
VARIANT_ID=”x86_64-systemd”
ANSI_COLOR=”1;35”
HOME_URL=”https://www.parabola.nu/”
DOCUMENTATION_URL=”https://wiki.parabola.nu/”
SUPPORT_URL=”ircs://irc.libera.chat/#parabola”
BUG_REPORT_URL=”https://labs.parabola.nu/”
LOGO=”parabola-logo”

You can use the pacman package manager to install binwalk as shown below:

$ sudo pacman -S binwalk squashfs-tools python-matplotlib python-gobject

The squashfs-tools package is needed during the extraction of a squashfs file system present in firmware. The python-matplotlib and python-gobject packages are required for producing entropy charts.

Help

Binwalk version 2.4.1 is installed at the time of writing this article on Parabola GNU/Linux-libre. You can view the command line options using the ‘-h’ help option as shown below:

$ binwalk -h
Binwalk v2.4.1
Original author: Craig Heffner, ReFirmLabs
https://github.com/OSPG/binwalk
Usage: binwalk [OPTIONS] [FILE1] [FILE2] [FILE3] ...
Signature Scan Options:
-B, --signature Scan target file(s) for common file signatures
-R, --raw=<str> Scan target file(s) for the specified sequence of bytes
-A, --opcodes Scan target file(s) for common executable opcode signatures

Signature

Consider the Buffalo WHR-G125 2007 router firmware available at the dd-wrt.com website. You can view the firmware signature with the ‘-B’ option as follows:

$ binwalk -B dd-wrt.v24_whr-g125.bin
DECIMAL HEXADECIMAL DESCRIPTION
-------------------------------------------------------------
0 0x0 TRX firmware header, little endian, image size: 3543040 bytes, CRC32: 0x85472C8C, flags: 0x0, version: 1, header size: 28 bytes, loader offset: 0x1C, linux kernel offset: 0x8E4, rootfs offset: 0x8E7CC
28 0x1C gzip compressed data, maximum compression, from Unix, last modified: 1970-01-01 00:00:00 (null date)
2276 0x8E4 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, uncompressed size: 1982464 bytes
583628 0x8E7CC Squashfs filesystem, little endian, DD-WRT signature, version 3.0, size: 2954340 bytes, 587 inodes, blocksize: 65536 bytes, created: 2007-06-14 00:34:20

Extract

The ‘-e’ option with binwalk will extract the individual files in the firmware as shown below:

$ binwalk -e dd-wrt.v24_whr-g125.bin
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------
0 0x0 TRX firmware header, little endian, image size: 3543040 bytes, CRC32: 0x85472C8C, flags: 0x0, version: 1, header size: 28 bytes, loader offset: 0x1C, linux kernel offset: 0x8E4, rootfs offset: 0x8E7CC
28 0x1C gzip compressed data, maximum compression, from Unix, last modified: 1970-01-01 00:00:00 (null date)
2276 0x8E4 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, uncompressed size: 1982464 bytes

The list of files can be viewed from the extracted folder:

$ ls _dd-wrt.v24_whr-g125.bin.extracted/
1C 8E4 8E4.7z 8E7CC.squashfs squashfs-root

Recursive extraction

You can also perform recursive extraction using the ‘-M’ option with ‘-e’ on the dd-wrt.v24_whr-g125.bin firmware as illustrated below:

$ binwalk -Me dd-wrt.v24_whr-g125.bin

Scan Time: 2024-08-18 17:24:57

Target File: /home/guest/dd-wrt.v24_whr-g125.bin

MD5 Checksum: 8a60810685fa5be6221936034b81fd3a

Signatures: 436

..DECIMAL HEXADECIMAL DESCRIPTION

-------------------------------------------------------------

13309 0x33FD JBOOT STAG header, image id: 2, timestamp 0x12A200, image size: 134217728 bytes, image JBOOT checksum: 0x200, header JBOOT checksum: 0x6824

...280470 0x44796 ESP Image (ESP32): flash mode: QUIO, flash speed: 40MHz, flash size: 1MB, entry address: 0x90000

...620573 0x9781D JBOOT STAG header, image id: 5, timestamp 0x5008310, image size: 1064960 bytes, image JBOOT checksum: 0x0, header JBOOT checksum: 0x2000

...

1014905 0xF7C79 JBOOT STAG header, image id: 6, timestamp 0x803E3, image size: 83886080 bytes, image JBOOT checksum: 0xA000, header JBOOT checksum: 0x10

...1632592 0x18E950 CRC32 polynomial table, little endian

1634928 0x18F270 Linux kernel version 2.4.34

1648720 0x192850 Unix path: /usr/lib/libc.so.1

Extract <type> signature

If you would like to extract a specific signature type file, you need to specify the same with the ‘-D’ option. For example, the following command extracts all .7z compressed files from the input firmware file.

$ binwalk -D ‘7z’ dd-wrt.v24_whr-g125.bin

DECIMAL HEXADECIMAL DESCRIPTION

--------------------------------------------------------------------------------

0 0x0 TRX firmware header, little endian, image size: 3543040 bytes, CRC32: 0x85472C8C, flags: 0x0, version: 1, header size: 28 bytes, loader offset: 0x1C, linux kernel offset: 0x8E4, rootfs offset: 0x8E7CC

28 0x1C gzip compressed data, maximum compression, from Unix, last modified: 1970-01-01 00:00:00 (null date)

2276 0x8E4 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, uncompressed size: 1982464 bytes

583628 0x8E7CC Squashfs filesystem, little endian, DD-WRT signature, version 3.0, size: 2954340 bytes, 587 inodes, blocksize: 65536 bytes, created: 2007-06-14 00:34:20





$ ls _dd-wrt.v24_whr-g125.bin.extracted/

8E4 8E4.7z

Hexdump

The ‘-W’ option provides a hexdump of the binary file as shown below:

$ binwalk -W dd-wrt.v24_whr-g125.bin

OFFSET dd-wrt.v24_whr-g125.bin

-------------------------------------------------------------

0x00000000 48 44 52 30 00 10 36 00 8C 2C 47 85 00 00 01 00 |HDR0..6..,G.....|

0x00000010 1C 00 00 00 E4 08 00 00 CC E7 08 00 1F 8B 08 00 |................|

0x00000020 00 00 00 00 02 03 A5 56 41 6C 1C 67 15 FE F6 9F |.......VAl.g....|

0x00000030 B1 BD 76 BC 61 BC DE 44 9B 10 45 F3 67 C7 EB 55 |..v.a..D..E.g..U|

0x00000040 9C C3 14 96 E0 A2 39 0C BB 9B CA 87 22 19 A7 87 |......9.....”...|

0x00000050 1E 22 B4 38 16 58 A8 07 AB 58 C2 07 0E 23 27 95 |.”.8.X...X...#’.|

0x00000060 0C DA 66 96 CA 15 0B A7 D5 DA 4E 73 70 BC A6 A5 |..f.......Nsp...|<span style="color: #ec008b;"><span style="font-family: Liberation Mono, serif;"><span style="font-size: xx-small;">.</span></span></span>

Display of selective lines

You can filter the hexdump output based on colour code bytes as illustrated below:

Colour

Description

Red

Bytes different in all files

Blue

Bytes different in some files

Green

Bytes same in all files

$ binwalk -W --blue dd-wrt.v24_whr-g125.bin

OFFSET dd-wrt.v24_whr-g125.bin

-------------------------------------------------------------

*

$ binwalk -W --green dd-wrt.v24_whr-g125.bin

OFFSET dd-wrt.v24_whr-g125.bin

-------------------------------------------------------------

*

$ binwalk -W --red dd-wrt.v24_whr-g125.bin

OFFSET dd-wrt.v24_whr-g125.bin

-------------------------------------------------------------

0x00000000 48 44 52 30 00 10 36 00 8C 2C 47 85 00 00 01 00 |HDR0..6..,G.....|

0x00000010 1C 00 00 00 E4 08 00 00 CC E7 08 00 1F 8B 08 00 |................|

0x00000020 00 00 00 00 02 03 A5 56 41 6C 1C 67 15 FE F6 9F |.......VAl.g....|

0x00000030 B1 BD 76 BC 61 BC DE 44 9B 10 45 F3 67 C7 EB 55 |..v.a..D..E.g..U|

0x00000040 9C C3 14 96 E0 A2 39 0C BB 9B CA 87 22 19 A7 87 |......9.....”...|

Raw LZMA compression stream

The ‘-Z’ option identifies raw LZMA compression data streams from the firmware file as shown below:

$ binwalk -Z dd-wrt.v24_whr-g125.bin

DECIMAL HEXADECIMAL DESCRIPTION

-------------------------------------------------------------

2289 0x8F1 Raw LZMA compression stream, properties: 0x5D [pb: 2, lp: 0, lc: 0], dictionary size: 1048576

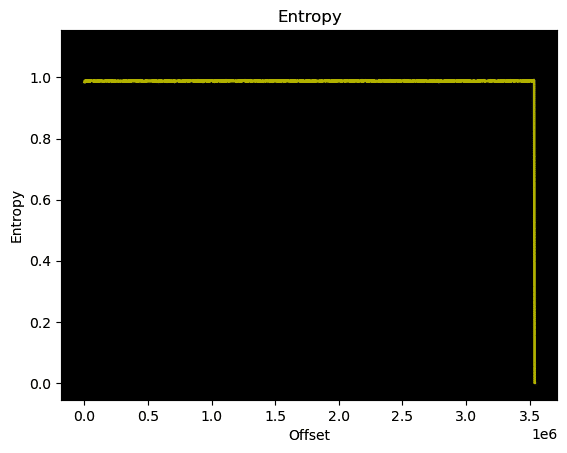

Figure 1: Entropy

Partial compression streams

You can search only for compression streams using the

‘–partial’ option to speed the LZMA scan as follows:

$ binwalk --partial -Z dd-wrt.v24_whr-g125.bin

DECIMAL HEXADECIMAL DESCRIPTION

-------------------------------------------------------------

2289 0x8F1 Raw LZMA compression stream, properties: 0x5D [pb: 2, lp: 0, lc: 0], dictionary size: 33554432

583747 0x8E843 Raw LZMA compression stream, properties: 0x5D [pb: 2, lp: 0, lc: 0], dictionary size: 33554432

607501 0x9450D Raw LZMA compression stream, properties: 0x5D [pb: 2, lp: 0, lc: 0], dictionary size: 33554432

633288 0x9A9C8 Raw LZMA compression stream, properties: 0x5D [pb: 2, lp: 0, lc: 0], dictionary size: 33554432

658249 0xA0B49 Raw LZMA compression stream, properties: 0x5D [pb: 2, lp: 0, lc: 0], dictionary size: 33554432

Length limit

The ‘–length’ option is used to limit the size of bytes in the firmware file for analysis. For example:

$ binwalk --length=0x500 dd-wrt.v24_whr-g125.bin

DECIMAL HEXADECIMAL DESCRIPTION

-------------------------------------------------------------

0 0x0 TRX firmware header, little endian, image size: 3543040 bytes, CRC32: 0x85472C8C, flags: 0x0, version: 1, header size: 28 bytes, loader offset: 0x1C, linux kernel offset: 0x8E4, rootfs offset: 0x8E7CC

28 0x1C gzip compressed data, maximum compression, from Unix, last modified: 1970-01-01 00:00:00 (null date)

Opcodes

The CPU architecture opcodes can be viewed using the ‘-A’ option as indicated below:

$ binwalk -A dd-wrt.v24_whr-g125.bin

DECIMAL HEXADECIMAL DESCRIPTION

-------------------------------------------------------------

2322822 0x237186 ARM instructions, function prologue

Raw string

The ‘-R’ option allows you to search for a custom string in the target file. The header string ‘HDR0’ is matched in the following example:

$ binwalk -R “HDR0” dd-wrt.v24_whr-g125.bin

DECIMAL HEXADECIMAL DESCRIPTION

-------------------------------------------------------------

0 0x0 Raw signature (HDR0)

Disabling signature match

You can disable the ‘smart’ signature match with the ‘-b’ option as indicated below:

$ binwalk -b dd-wrt.v24_whr-g125.bin

DECIMAL HEXADECIMAL DESCRIPTION

-------------------------------------------------------------

0 0x0 TRX firmware header, little endian, image size: 3543040 bytes, CRC32: 0x85472C8C, flags: 0x0, version: 1, header size: 28 bytes, loader offset: 0x1C, linux kernel offset: 0x8E4, rootfs offset: 0x8E7CC

28 0x1C gzip compressed data, maximum compression, from Unix, last modified: 1970-01-01 00:00:00 (null date)

2276 0x8E4 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, uncompressed size: 1982464 bytes

583628 0x8E7CC Squashfs filesystem, little endian, DD-WRT signature, version 3.0, size: 2954340 bytes, 587 inodes, blocksize: 65536 bytes, created: 2007-06-14 00:34:20

1674548 0x198D34 rzip compressed data - version 59.-98 (1020936805 bytes)

Entropy

The ‘-E’ option performs entropy analysis on the target file and generates the entropy graph.

$ binwalk -E dd-wrt.v24_whr-g125.bin
DECIMAL HEXADECIMAL ENTROPY
-------------------------------------------------------------

0 0x0 Rising entropy edge (0.984773)
3536896 0x35F800 Falling entropy edge (0.626462)

You can also use the ‘–verbose’ option for displaying a more detailed entropy calculation as follows:

$ binwalk -E --verbose dd-wrt.v24_whr-g125.bin
Scan Time: 2024-08-18 21:06:24
Target File: /home/shakthi/operation-gladiator/osfy/security-series/5-binwalk/dd-wrt.v24_whr-g125.bin
MD5 Checksum: 8a60810685fa5be6221936034b81fd3a
MD5 Checksum: 8a60810685fa5be6221936034b81fd3a
DECIMAL HEXADECIMAL ENTROPY

-------------------------------------------------------------

0 0x0 0.984773

2048 0x800 0.988507

4096 0x1000 0.988300

6144 0x1800 0.989242

8192 0x2000 0.988839

10240 0x2800 0.989643

12288 0x3000 0.989161

14336 0x3800 0.987165

16384 0x4000 0.988030

18432 0x4800 0.989496

Do read the binwalk GitHub documentation to learn more on its options, usage and API.
