The Socket API, Part 5: SCTP

Socket API

This article on socket programming deals with the Stream Control Transmission Protocol (SCTP).

Similar to TCP and UDP, SCTP provides some features of both. It is message-oriented, and provides a reliable sequenced delivery of messages. SCTP supports multi-homing, i.e., multiple IPs on both sides of the connection. So it is called an association instead of a connection, as a connection involves communication between two IPs, while an association refers to communication between two systems that may have multiple IPs.

SCTP can provide multiple streams between connection endpoints, and each stream will have its own reliable sequenced delivery of messages, so any lost message will not block the delivery of messages in any of the other streams. SCTP is not vulnerable to SYN flooding, as it requires a 4-way handshake.
We will discuss the science later, and now jump to the code, as we usually do. But first you need to know the types of SCTP sockets:

  • A one-to-one socket that corresponds to exactly one SCTP association (similar to TCP).
  • A one-to-many socket, where many SCTP associations can be active on a socket simultaneously (similar to UDP receiving datagrams from several endpoints).

One-to-one sockets (also called TCP-style sockets) were developed to ease porting existing TCP applications to SCTP, so the difference between a server implemented using TCP and SCTP is not much. We just need to modify the call to socket() to socket(AF_INET, SOCK_STREAM, and IPPROTO_SCTP) while everything else stays the same — the calls to listen(), accept() for the server, and connect() for the client, with read() and write() calls for both.

Now let’s jump to the one-to-many or UDP-style socket, and write a server using multiple streams that the client follows.

First, here is the code for the server, smtpserver.c:

#include <stdio.h>
#include <string.h>
#include <time.h>
#include <sys/socket.h>
#include <sys/types.h>
#include <netinet/in.h>
#include <netinet/sctp.h>
#include <arpa/inet.h>


#define MAX_BUFFER	1024

int main()
{
	int sfd, cfd, len, i;
	struct sockaddr_in saddr, caddr;
	struct sctp_initmsg initmsg;
	char buff[INET_ADDRSTRLEN];
	char buffer[MAX_BUFFER+1] = "Message ##\n";


	sfd = socket( AF_INET, SOCK_STREAM, IPPROTO_SCTP );

	bzero( (void *)&saddr, sizeof(saddr) );
	saddr.sin_family = AF_INET;
	saddr.sin_addr.s_addr = htonl( INADDR_ANY );
	saddr.sin_port = htons(29008);

	bind( sfd, (struct sockaddr *)&saddr, sizeof(saddr) );

/* Maximum of 3 streams will be available per socket */
	memset( &initmsg, 0, sizeof(initmsg) );
	initmsg.sinit_num_ostreams = 3;
	initmsg.sinit_max_instreams = 3;
	initmsg.sinit_max_attempts = 2;
	setsockopt( sfd, IPPROTO_SCTP, SCTP_INITMSG,
			&initmsg, sizeof(initmsg) );

	listen( sfd, 5 );

	for(;;) {
		printf("Server Running\n");

		len=sizeof(caddr);
		cfd=accept(sfd, (struct sockaddr *)&caddr, &len);

		printf("Connected to %s\n",
			inet_ntop(AF_INET, &caddr.sin_addr, buff,
			sizeof(buff)));


		for(i=0; i< 3; i++) {
/* Changing 9th character the character after # in the message buffer */
			buffer[9] = '1'+i;

			sctp_sendmsg( cfd, (void *)buffer, (size_t)strlen(buffer),
					NULL, 0, 0, 0, i /* stream */, 0, 0 );
			printf("Sent: %s\n", buffer);
		}

		close( cfd );
	}
	return 0;
}

And here’s the code of the client, sctpclient.c:

#include <stdio.h>
#include <string.h>
#include <sys/socket.h>
#include <sys/types.h>
#include <netinet/in.h>
#include <netinet/sctp.h>

#define MAX_BUFFER	1024

int main(int argc, char **argv)
{
	int cfd, i, flags;
	struct sockaddr_in saddr;
	struct sctp_sndrcvinfo sndrcvinfo;
	struct sctp_event_subscribe events;
	struct sctp_initmsg initmsg;
	char buffer[MAX_BUFFER+1];

	if(argc!=2) {
		printf("Usage: %s ipaddress\n", argv[0]);
	return -1;
	}

	cfd = socket( AF_INET, SOCK_STREAM, IPPROTO_SCTP );

/* Specify that a maximum of 3 streams will be available per socket */
	memset( &initmsg, 0, sizeof(initmsg) );
	initmsg.sinit_num_ostreams = 3;
	initmsg.sinit_max_instreams = 3;
	initmsg.sinit_max_attempts = 2;
	setsockopt( cfd, IPPROTO_SCTP, SCTP_INITMSG,
			&initmsg, sizeof(initmsg) );

	bzero( (void *)&saddr, sizeof(saddr) );
	saddr.sin_family = AF_INET;
	inet_pton(AF_INET, argv[1], &saddr.sin_addr);
	saddr.sin_port = htons(29008);

	connect( cfd, (struct sockaddr *)&saddr, sizeof(saddr) );

	memset( (void *)&events, 0, sizeof(events) );
	events.sctp_data_io_event = 1;
	setsockopt( cfd, SOL_SCTP, SCTP_EVENTS,
		(const void *)&events, sizeof(events) );


/* Sending three messages on different streams */

	for (i=0; i<3; i++) {
		bzero( (void *)&buffer, sizeof(buffer) );

		sctp_recvmsg( cfd, (void *)buffer, sizeof(buffer),
                        (struct sockaddr *)NULL, 0, &sndrcvinfo, &flags );

		printf("Received following data on stream %d\n\n%s\n",
			sndrcvinfo.sinfo_stream, buffer);

	}

	close(cfd);

	return 0;
}

The server is sending three messages on three different streams, and the client is just receiving the messages and printing them on the screen (see Figures 1 and 2).

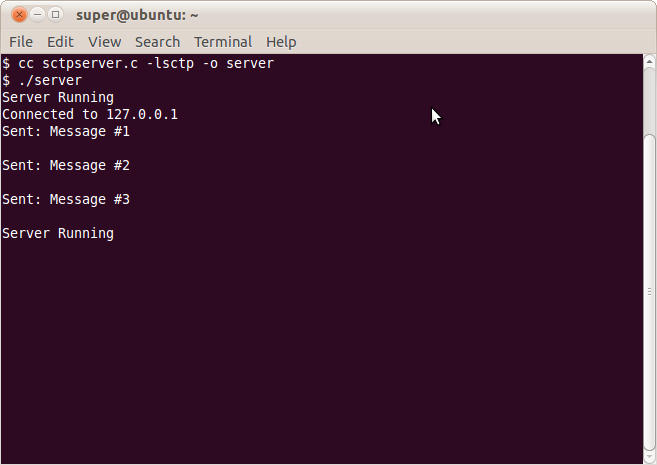

Server output

Figure 1: Server output

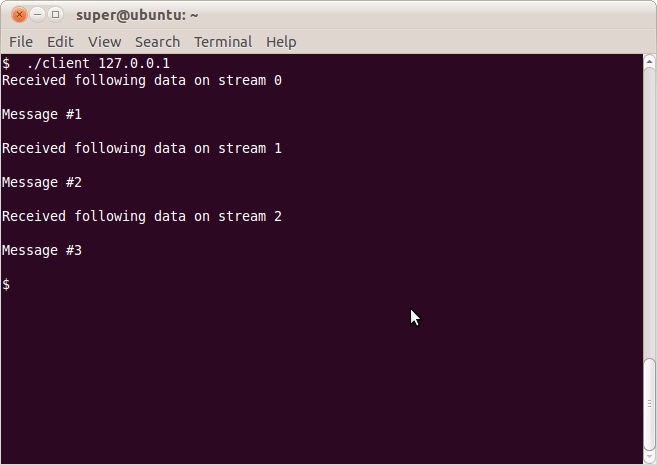

Client output

Figure 2: Client output

The code is similar to the TCP client, as we are again making calls to the same functions [refer to Parts 1, 2, 3 and 4 of this series.]. The difference is that we are creating an iterative server, similar to the one for UDP, but we have an accept() call here. The client does the reverse, and receives the messages coming from the server to the client. Now let’s try to understand the functions that we used:

#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/sctp.h>

int sctp_sendmsg (int sd, const void *msg, size_t len,
    struct sockaddr *to, socklen_t tolen, uint32_t ppid, uint32_t
    flags, uint16_t stream_no, uint32_t timetolive, uint32_t context);

We are using this function to send a message from a socket while using the advanced features of SCTP. The first argument to the function is sd, the socket descriptor, from which the message msg of length len is sent. The fourth argument is to give the destination address — tolen specifies the length of the destination address, while stream_no identifies the stream number to send this message to. The flags parameter is used to send some options to the receiver. You can check out the manual pages for sctp_sendmsg().

The timetolive parameter is time in milliseconds after which the message will expire if not sent by then; the zero here indicates that no time-out is set. The context is the value passed to the upper layer along with the undelivered message, if an error occurs while sending the message. When successful, it will return the number of bytes sent, or -1 on error.

Next is the stcp_recvmsg() function:

#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/sctp.h>

int sctp_recvmsg(int sd, void * msg, size_t len, struct
    sockaddr * from, socklen_t * fromlen, struct sctp_sndrcvinfo
    * sinfo, int * msg_flags);

This function does the reverse of the sctp_sendmsg function and is used to receive a message. The parameters are similar. The socket sd receives the msg of length len from the address *from with a length *fromlen, and *sinfo is a pointer to the address, which will be filled upon receipt of the message. mag_flags is a pointer to an integer with flags like MSG_NOTIFICATION or MSG_EOR. It returns the number of bytes received, or -1 on error.

#include <sys/types.h>
#include <sys/socket.h>

int setsockopt(int sockfd, int level, int optname,
                      const void *optval, socklen_t optlen);

This function is used to set the options for the socket sockfd. The next argument is the level at which the option resides. To manipulate options at the sockets API level, the level is specified as SOL_SOCKET. optname and any specified options are passed uninterpreted to the appropriate protocol module for interpretation. The level and optname are defined in sys/sockets.h. The arguments optval and optlen are used to access option values for setsockopt() that are stored in the structure. The options we set in the server are:

initmsg.sinit_num_ostreams = 3;
initmsg.sinit_max_instreams = 3;
initmsg.sinit_max_attempts = 2;

Here, the first two lines tell us that the output and input streams available are three, and the maximum attempts will be two. The same options are set in the client program. Other options are set for the events. This structure will be filled when an event like “message received” occurs, and our program is notified. Its counterpart function is getsockopts() (look up the man pages for help). The rest of the code is simple to understand.

Now compile and run the program; make sure you have installed sctp-tools so that you’ll have sctp.h at netinet/. To compile, use gcc sctpserver.c -lsctp -o server && gcc sctpclient.c -lsctp -o client; and to run, use the following code:

$ ./server &
$  ./client

I’m wrapping up the series for now, but will keep adding more to the topic, on and off.
